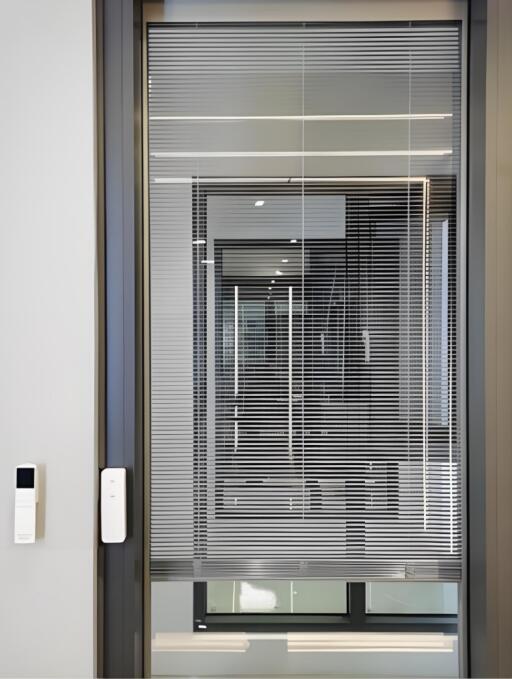

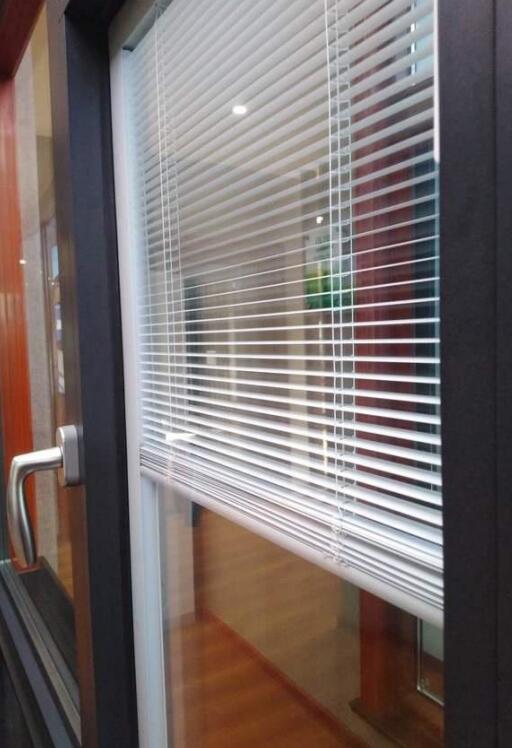

Built-in blinds insulating glass is a sunshade product that integrates aluminum alloy blinds into the double-layer tempered glass insulating layer. The Angle and lifting of the blinds can be adjusted through an external magnetic control system. It combines the traditional shading function with modern insulating glass technology, featuring heat preservation, sound insulation and dust prevention. The layer spacing is usually 16-27mm, and it is suitable for residential, commercial and public buildings.

This product achieves 180-degree flipping or complete retracting of the blades through a magnetic control device. In summer, the closed state can block direct sunlight and reduce air conditioning energy consumption. In winter, the blades can be lifted to enhance the heat energy absorption rate. Combined with the hollow structure, the energy-saving effect is improved. Its wind pressure resistance, water resistance and sound insulation performance meet the building safety standards. In medical and educational scenarios, it can replace traditional fabric curtains, reducing the breeding of bacteria and the risk of fire.

【Product Introduction】

It is generally opened or closed by manual rope pulling or mechanical methods. Relying on advanced technology, the Venetian blinds are installed as a whole inside the insulating glass. Magnetic force is used to control the Venetian blinds inside the insulating glass, which can be easily raised or lowered or flipped 180 degrees. This product not only saves usage space, but also achieves the purpose of shading. It also has the functions of heat preservation and noise reduction, while giving buildings and interiors a novel visual effect. Whether in summer or winter, the Angle of the blinds can be adjusted to achieve shading or lighting and heating, significantly reducing the energy consumption of air conditioners. It is estimated that when the louvers are closed, the maximum energy-saving effect can reach 40%. Due to the adoption of a double-layer tempered glass structure, it has high wind resistance and external impact resistance, making it more suitable for high-rise and coastal buildings. This product can also replace traditional partition walls and the like. Louvered insulating glass is a new product that installs louvers inside the cavity of insulating glass. The louvers inside the insulating glass can be adjusted at any Angle to allow full light transmission, semi-light transmission or light blocking. At the same time, the louvers can be fully pulled up to become a fully light-transmitting window. It particularly highlights the unique thermal insulation, sound insulation, dust pollution prevention and safety advantages of insulating glass, and is the best ideal product for solving the shading performance of building Windows. The product features rational space utilization: no dedicated space for installing blinds is required. Make the space more spacious. Strong sound insulation effect: Through the wide hollow isolation layer, it ensures the creation of a quiet space and enhances the functions of sound insulation, heat insulation, heat preservation and wind resistance. Good sanitary environment: Blocks dust and pollutants, creating a refreshing living environment. Economic practicality: There is no need to worry about wear and tear or damage, and it can be used clean and tidy for a long time.

【Product Specification】

1, the existing 4 + a + 4, 16, 19 a + 5, 5 + 5 + 23 25 a + a + 5, 5 + 5, 5 + 27 a + 5, and other specifications.

2.Size specifications of the built-in magnetic control hollow louver glass

Maximum最大：(W)1000mm*(H)1500mm,总面积 Total area＜3.2平方

Minimum最小：(W)200mm*(H)200mm

3、铝合金叶片：Aluminum alloy blade

厚度为The thickness is（0.21±0.02）mm；宽度为 The Width is（15±0.1）mm

【Product advantage】

1、Energy-saving property

The built-in louvered insulating glass is made of high-quality double-layer tempered glass combined with imported aluminum louvers and a single-handle magnetic control mechanism. In summer, when the louvers are adjusted to the closed position, they can block direct sunlight and prevent the convection of cold and hot air, significantly reducing the energy consumption of indoor air conditioners. In winter, the slats can be lifted to allow direct sunlight and fully absorb heat energy. With a 20mm hollow layer as a barrier, the indoor insulation temperature will be greatly increased, thereby achieving the purpose of energy conservation and cost reduction in operation. Louvered insulating glass is a new energy-saving product that installs louvers inside insulating glass. Venetian blinds are a traditional heat insulation and sunshade product, while insulating glass is a modern thermal insulation product. By integrating traditional Venetian blinds with insulating glass, the operation of the blinds can be achieved through magnetic control of the closing device and lifting device. This not only saves usage space and inconvenience but also endows glass doors and Windows with excellent sunshade performance It has enhanced the thermal insulation performance of insulating glass and improved the indoor light environment.

2、Dust-proof, oil-proof and pollution-proof

It has the advantages of dust-proof, oil-proof and pollution-proof. Meanwhile, due to the application of a high-tech magnetic induction transmission system, the closing and opening, as well as the up and down movement of the louver blades become more convenient. The slats do not need to be cleaned, achieving the effect of saving time, effort and money. The built-in louvered insulating glass door and window system not only creates a personalized private space but also brings you a quiet, comfortable and healthy environment unconsciously.

3、Fire resistance

In any building, traditional curtains are flammable. Moreover, in the event of a fire, curtains made of materials such as fabric and chemical fibers will release a large amount of toxic smoke when burning, causing suffocation and casualties among the people inside. The built-in louvered insulating glass is not only immune to open flames but also does not release thick smoke in a big fire. Double-layer tempered glass and the built-in aluminum-magnesium louver blades also have the function of blocking the spread of flames, effectively reducing the probability of fire occurrence. It is a reliable fireproof product.

4、Sound insulation

Insulating glass can generally reduce the noise transmitted from outside to inside by about 25 decibels. The single-handle magnetic control insulating glass with built-in blinds can further reduce the indoor noise by up to 36 decibels, ensuring the sound insulation effect.

5、 Anti-frosting

In regions with relatively cold winters, due to the significant temperature difference between indoors and outdoors, the common glass door and window systems tend to accumulate ice and frost. The built-in louvered insulating glass door and window system, due to its excellent air tightness and water tightness, effectively isolates the phenomenon of moisture seepage and avoids the freezing and frosting on the door and window glass system.

【Product performance】

The maximum shading rate (1- shading coefficient) can reach over 84%.

The thermal performance grade reaches above level 5 (K≤ 2.0 W/m ² ·h).

The wind pressure resistance performance grade reaches level 5 or above (P3 ≥ 3.0 KPa).

The water tightness performance grade can reach level 5 (∆P ≥ 1500 Pa).

The air tightness performance grade can reach level 4 (qL ≤ 0.5 m ³ /m*h).

The sound insulation performance grade can reach level 3 (Rw ≤ 42 db).

【Product application】

Built-in louvered insulating glass is widely used in various types of buildings such as civil residences, office buildings, villas and public buildings. No matter how high-end and luxurious your apartment or villa is decorated, Chinese cooking always generates a lot of fumes, making the curtains used in the kitchen covered with oil stains and dust. Being easy to get dirty and difficult to clean has always been a problem that troubles housewives. Traditional curtains are mostly made of flammable materials such as cotton yarn and chemical fibers, which are more likely to become fire hazards. The scarcity of urban land has increased the building density of buildings. Protecting the privacy rights of property owners and creating personalized private Spaces are the fundamental principles of humanized architectural aesthetics. As long as you gently slide the magnetic sensor slider to adjust the lifting, opening and closing of the slats, you can create your favorite light-transmitting environment in the bedroom, bathroom and living room. Many buildings use glass curtain walls as their exterior decorative surfaces, which are crystal clear, high-end and luxurious. Once put into use, the curtains installed and used by users are of all kinds of strange shapes, seriously affecting the appearance of the building. The use of built-in louvered insulating glass can bring out the neat and luxurious beauty of the building. While saving the cost of installing and cleaning curtains, it also achieves multiple benefits such as energy conservation, sound insulation, fire prevention, dust prevention and UV protection. There are many hospitals and the air cleanliness is relatively poor, allowing various viruses, bacteria, microorganisms, dust and other particles to spread freely. If curtains or external blinds are not cleaned in time, they will become a breeding ground for viruses and bacteria, causing cross-infection. This is not conducive to the diagnosis, treatment and recovery of patients, and is even more detrimental to the formation of a harmonious doctor-patient relationship. The school is also a special environment. It uses built-in louvered insulating glass to protect students from external disturbances during their classes and studies. Block the direct exposure of strong sunlight to protect students' eyesight.

Residential building

The warm and peaceful living environment enables you to forget the fatigue of a day's work, allowing your body and mind to return to the embrace of nature and enjoy the happiness of family togetherness.

Business Building

The bright and transparent office environment will make you feel refreshed and energetic. It makes work twice as effective with half the effort.

Hospital

It can replace indoor curtains and effectively prevent the re-spread of germs through indoor curtains.

Government agencies, enterprises and public institutions

Office privacy, maximizing space, allowing each space to be interconnected while also enabling independent work without interference.
